 Trim Tab Basics
#7603294
06/03/12 10:54 PM
|
Joined: Apr 2012
Posts: 125
BIGKAHUNA
OP
Outdoorsman
|
|
OP
Outdoorsman
Joined: Apr 2012
Posts: 125 |
What does the trim tab actually do and how do you know you if it needs to be adjusted? If it does - what is the procedure?
|
|
|
Re: Trim Tab Basics
[Re: BIGKAHUNA]
#7603689
06/04/12 01:17 AM
|
Joined: May 2003
Posts: 11,586
gary purdy
TFF Guru
|
|
TFF Guru
Joined: May 2003
Posts: 11,586 |
It acts to correct or off-set steering torque by directing water in the opposite direction of the torque generated by the prop. You need to adjust the tab if its hard to turn the steering wheel in one direction, you have to hold pressure to prevent steering wheel from turning while going straight. Turn tab same direction boat wants to go in small increments and test.
The world will not be destroyed by those who do evil, but by those who watch them without doing anything. Remember what He has done and remember that He is not done yet!-- GOD IS GOOD
|
|
|
Re: Trim Tab Basics
[Re: gary purdy]
#7603711
06/04/12 01:26 AM
|
Joined: Apr 2012
Posts: 125
BIGKAHUNA
OP
Outdoorsman
|
|
OP
Outdoorsman
Joined: Apr 2012
Posts: 125 |
It acts to correct or off-set steering torque by directing water in the opposite direction of the torque generated by the prop. You need to adjust the tab if its hard to turn the steering wheel in one direction, you have to hold pressure to prevent steering wheel from turning while going straight. Turn tab same direction boat wants to go in small increments and test. Thanks for the explanation!
|
|
|
Re: Trim Tab Basics
[Re: gary purdy]
#7606652
06/04/12 09:36 PM
|
Joined: Apr 2011
Posts: 13
skeeter102
Green Horn
|
|
Green Horn
Joined: Apr 2011
Posts: 13 |

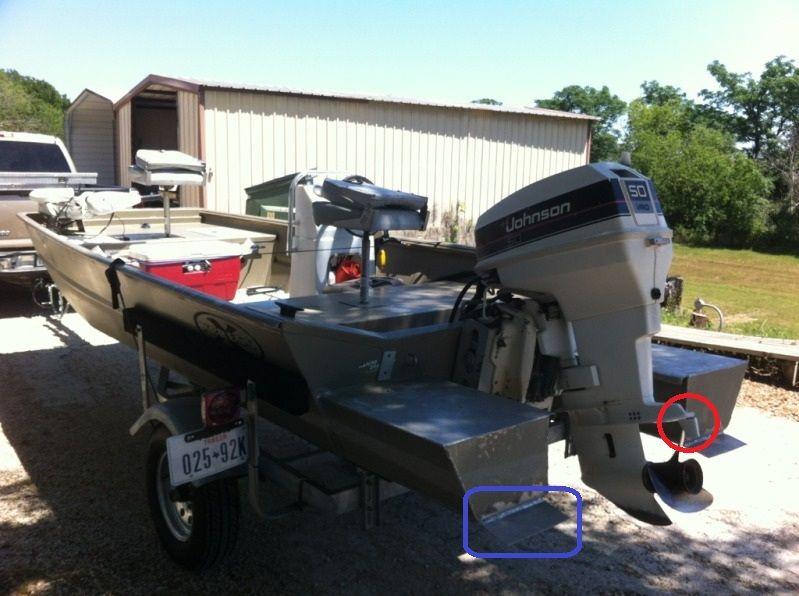

It acts to correct or off-set steering torque by directing water in the opposite direction of the torque generated by the prop. You need to adjust the tab if its hard to turn the steering wheel in one direction, you have to hold pressure to prevent steering wheel from turning while going straight. Turn tab same direction boat wants to go in small increments and test. I believe that what you are describing is the item circled in red in the picture below. The item boxed in blue can also be referred to as trim tabs. These pictured are home made and are not designed to be adjustable. There are also some on the market that are hydraulic. These are used to level the boat side to side or can be used to adjust the way the boat rides. Here is a link that explains them better than I can. Not trying to be disrespectful in any way, just trying to spread information. http://www.bennetttrimtabs.com/guidetotrimtabs.php
|
|
|
Re: Trim Tab Basics
[Re: BIGKAHUNA]
#7610879
06/05/12 07:29 PM
|
Joined: Apr 2012
Posts: 125
BIGKAHUNA
OP
Outdoorsman
|
|
OP
Outdoorsman
Joined: Apr 2012
Posts: 125 |
What I was referring to is the device in the red circle. I have never seen what is in the blue square. New one for me
|
|
