Print Thread
Plug To Fridge #5721514 01/16/11 12:25 AM
Joined: Jul 2005
Posts: 11,174
MARKIT Offline OP
TFF Guru
OP Offline
TFF Guru
Joined: Jul 2005
Posts: 11,174
The electric circuit that runs
Fridge, washer, Gas Dryer
as enough power to light a tester but does not pull a load when you turn on the anything
the breaker does not trip
also have a few sparks around the neutral at the bottom of the breaker panel
Any help, I replaced the plugs already

Re: Plug To Fridge [Re: MARKIT] #5721830 01/16/11 01:46 AM
Joined: Feb 2009
Posts: 13,072
tgravley aka lewisvillecatfish Offline
TFF Guru
Offline
TFF Guru
Joined: Feb 2009
Posts: 13,072
Carefully check and make sure all connections are tight on your panel where all the white and bare wires are connected. Since the panel is sparking you should probably get it checked by a pro


I live with Fear everyday but sometimes she lets me go fishin
Lewisvillecatfish.com

PB 65#
www.lewisvillecatfish.com
Facebook.com/Tom Gravley
www.youtube.com/gravleybrats
Re: Plug To Fridge [Re: MARKIT] #5721853 01/16/11 01:55 AM
Joined: Jan 2010
Posts: 193
T
TheGallet Offline
Outdoorsman
Offline
Outdoorsman
T
Joined: Jan 2010
Posts: 193
Is it the neutral homerun for that circuit attached to the neutral bus, or is it the neutral for your service that has sparks?

It sounds like it could be a bad neutral, I take it your using a light pen to detect the magnegtic field. Try making sure that the neutral going to the bus bar in the panel is screwed down tight. Then go and check all the receptacles in the circuit making sure all the screws are tight on the hots and neutrals (with the breaker shut off of course smile.

If its aluminum wire its most likely a loose screw on a receptacle.

Let me know if you need anymore help.

Re: Plug To Fridge [Re: TheGallet] #5722213 01/16/11 03:31 AM
Joined: Jul 2005
Posts: 11,174
MARKIT Offline OP
TFF Guru
OP Offline
TFF Guru
Joined: Jul 2005
Posts: 11,174
Thanks
I will get a few pics of the neutral in the panel board
It might be bad
everything is tight
all wire is copper

Re: Plug To Fridge [Re: MARKIT] #5722849 01/16/11 12:12 PM
Joined: Feb 2006
Posts: 48,345
OldFrog Offline
TFF Guru
Offline
TFF Guru
Joined: Feb 2006
Posts: 48,345
Check the wiring from the receptacle that feeds it....usually a few feet away or on the wall behind it. If you dont find a bad connection there, I'll be surprised. ( make sure the wire isnt stuck in the back of the other plugs too. ..they need to be under the screws.) Sometimes it's two -2 plugs back towards the breaker.
If you dont find anything, swap the breaker with another one. It cold be bad. If there are any junction boxes anywhere....check all the connections ( wire nuts).


Now, Donald...please pick John Bolton for your running mate.
Re: Plug To Fridge [Re: OldFrog] #5723157 01/16/11 03:20 PM
Joined: Jul 2005
Posts: 11,174
MARKIT Offline OP
TFF Guru
OP Offline
TFF Guru
Joined: Jul 2005
Posts: 11,174

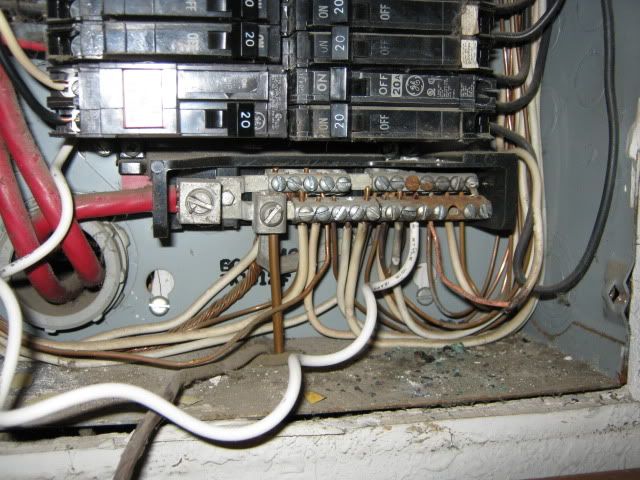

Here is a pic of the neutral

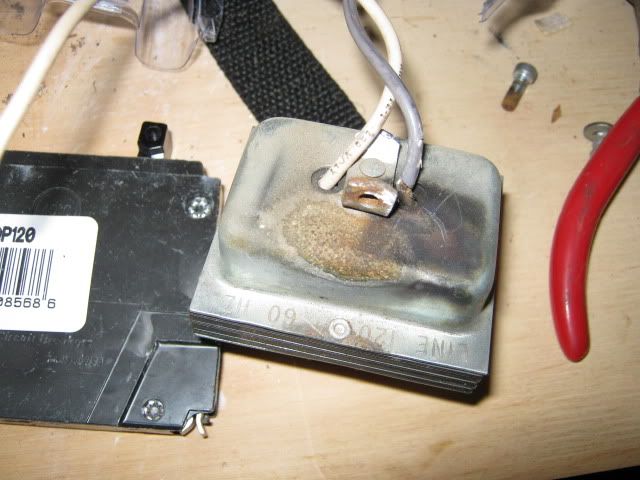

Lot of the corrosion is from the doorbell transformer(pic below) that was attached to the neutral bar
The one burnt neutral is from an overloaded microwave circuit (I will be pulling a new wire for this circuit)



Re: Plug To Fridge [Re: MARKIT] #5776045 01/29/11 02:03 PM
Joined: Mar 2008
Posts: 590
B
Bullfrog2 Offline
Pro Angler
Offline
Pro Angler
B
Joined: Mar 2008
Posts: 590
These guys may be right but anywhere you see sparks is where the loose wire is. Tight connections don't spark.


[Linked Image]
Re: Plug To Fridge [Re: Bullfrog2] #5779084 01/30/11 03:06 PM
Joined: Sep 2008
Posts: 121,182
hopalong Offline
Pescador Loco
Offline
Pescador Loco
Joined: Sep 2008
Posts: 121,182
if it won't pull the load you have a bad wire/overloaded circuit.
get a ammeter and set to ac volts then check the plugs to see what voltage you are getting at the plug, next check the breaker to see what the voltage is there. if you have 120 at the breaker but not a plug (or even 2 or all) a wire has gone bad, rodent chewed etc.
if the breaker does not have 120 replace it and test the plugs again, if still no juice at the plugs its a wire.
also what amperage is the breaker for those 3, should be a 20 not a 15amp.
