Let's talk about trolling motors #12201491 04/16/17 02:15 PM
Joined: Mar 2017
Posts: 102
L
Longliner Offline OP
Outdoorsman
OP Offline
Outdoorsman
L
Joined: Mar 2017
Posts: 102
Any recommendations on good ones and how to incorporate one into your kayak. How about saltwater vs freshwater trolling motors,thrust, batteries, mounting ideas or even small gas engine vs electric.

Re: Let's talk about trolling motors [Re: Longliner] #12201901 04/16/17 09:58 PM
Joined: Jan 2003
Posts: 19,382
Jimbo Offline
TFF Guru
Offline
TFF Guru
Joined: Jan 2003
Posts: 19,382

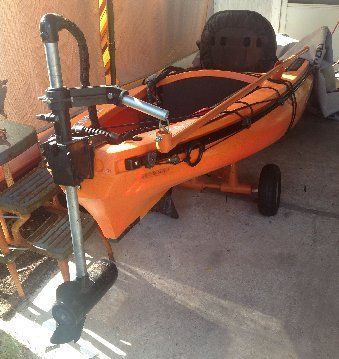

Here is an old trolling motor I had lying around that I mounted on my Commander120. I cut down the shaft, and use the control head next to my seat.
The pvc bar is my steering arm.


Just one more cast!

Re: Let's talk about trolling motors [Re: Jimbo] #12202120 04/17/17 01:10 AM
Joined: Mar 2017
Posts: 102
L
Longliner Offline OP
Outdoorsman
OP Offline
Outdoorsman
L
Joined: Mar 2017
Posts: 102
Originally Posted By: Jimbo


Here is an old trolling motor I had lying around that I mounted on my Commander120. I cut down the shaft, and use the control head next to my seat.
The pvc bar is my steering arm.

It looks good I want the same on my ride 135.

Re: Let's talk about trolling motors [Re: Jimbo] #12202137 04/17/17 01:19 AM
Joined: Mar 2008
Posts: 6,497
Shaun Russell Offline
TFF Celebrity
Offline
TFF Celebrity
Joined: Mar 2008
Posts: 6,497
Originally Posted By: Jimbo


Here is an old trolling motor I had lying around that I mounted on my Commander120. I cut down the shaft, and use the control head next to my seat.
The pvc bar is my steering arm.

Very nice, I'm thinking about doing this to my Commander 140. Do you have any close ups of the top where you cut it?



And he saith unto them, Follow me, and I will make you fishers of men.
Matthew 4:19
Re: Let's talk about trolling motors [Re: Longliner] #12202206 04/17/17 02:01 AM
Joined: Mar 2009
Posts: 1,478
S
Striper Lifer Offline
Extreme Angler
Offline
Extreme Angler
S
Joined: Mar 2009
Posts: 1,478
I have one on my PA and enjoy using it. I also have a Ride 115 and have pondered putting one on it. The rudder line holes would make it a fairly easy way to use foot steering I think.

Shaun, here's a link to a thread with some great info on Art's installation on his Commander.

http://texasfishingforum.com/forums/ubbthreads.php/topics/8860091/Commander_140_Trolling_Motor_r


Jonah 4:2
I knew that You are a gracious and compassionate God, slow to anger and abundant in lovingkindness, and one who relents concerning calamity.
Re: Let's talk about trolling motors [Re: Longliner] #12202223 04/17/17 02:18 AM
Joined: Mar 2003
Posts: 3,914
B
Bass Art Offline
TFF Team Angler
Offline
TFF Team Angler
B
Joined: Mar 2003
Posts: 3,914
I have my Commander 140 set up with a trolling motor similar to that. I used the steering cables/pedals to steer mine through a bracket that I made. It works great! Because my motor is not a Dura Amp, it isn't as efficient on the battery as it could be. I'm casually looking for a Dura Amp or Maximizer motor to install, but it still works very well. I have an 8" pitch prop from a gas powered RC airplane installed on it, and it will run about 5-1/2 mph on GPS with a hot battery.


Artie
________________________________
Dad took me fishing when I was 10, and I've been pretty much hooked since. He went to be with God on August 14, 2012. I miss you, Dad.
Re: Let's talk about trolling motors [Re: Shaun Russell] #12202290 04/17/17 03:17 AM
Joined: Jan 2003
Posts: 19,382
Jimbo Offline
TFF Guru
Offline
TFF Guru
Joined: Jan 2003
Posts: 19,382
Originally Posted By: Shaun Russell

Very nice, I'm thinking about doing this to my Commander 140. Do you have any close ups of the top where you cut it?


No I don't have any other pictures but I used a tubing cutter to cut the shaft, and then used a PVC elbow fastened with a bolt to keep it secure.
I had to add wiring in order to move the control head where it would reach all the way to my seat area.
I don't use the trolling motor very often, and with my setup I just undo the the transom clamps and battery clamps and the control head and trolling motor comes out of the kayak all at once. Only other thing I have to remove is to unhook the steering arm and remove the battery.
That's one thing about the Commander, it's pretty much trolling motor ready.
