Cedar cart build #14025058 06/08/21 08:43 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
Finally got started again on this cart. Here's some prelims. The top and bottom frame are made from cedar 2x6. They are dowelled and glued. The sheathing is made from old cedar 1x4s run through the joiner. I have these hickory slabs I may incorporate into the top. I also want to incorporate the black cutting board. Thinking of working the hickory around it. Also thought about making it a hidden board. Not sure yet. The bottom frame will be done in cedar slats 1.5 in wide. No finish on the cedar. Thinking about butcher block oil for the hickory top. Lots of ifs.

Attached Files 20200617_131706.jpg20200619_141551.jpg20210608_152342.jpg20210608_152403_HDR.jpg20210608_152257_HDR~2.jpg
Re: Cedar cart build [Re: malibu6501] #14025519 06/09/21 03:26 AM
Joined: Oct 2003
Posts: 3,104
A
ahren Offline
TFF Team Angler
Offline
TFF Team Angler
A
Joined: Oct 2003
Posts: 3,104
I like it.... but if it were my build I think I would look for some
more rustic looking wheels.


Originally Posted By: Mudshark
if it is within my reach, I'm going to pet it.
Re: Cedar cart build [Re: malibu6501] #14025841 06/09/21 01:53 PM
Joined: Sep 2008
Posts: 106,449
hopalong Online Confused
Pescador Loco
Online Confused
Pescador Loco
Joined: Sep 2008
Posts: 106,449
if you have enough hickory, make a split top that folds out to either side to expose the black board. use some ss piano hinges and just a flop top on either side. doubles the surface area and hides the black board.


" Hop, set the hook"!
hopalong 99,999
TexDawg 99,999
FJB! not my president by a long shot!

lake fork FISHERMANS COVE MARINA/reservations - 903 474 7479
Re: Cedar cart build [Re: ahren] #14025855 06/09/21 01:59 PM
Joined: Aug 2006
Posts: 16,062
C
COFF Online Content
TFF Guru
Online Content
TFF Guru
C
Joined: Aug 2006
Posts: 16,062
Originally Posted by ahren
I like it.... but if it were my build I think I would look for some
more rustic looking wheels.

I had the same thought.


Re: Cedar cart build [Re: malibu6501] #14026365 06/09/21 08:49 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940

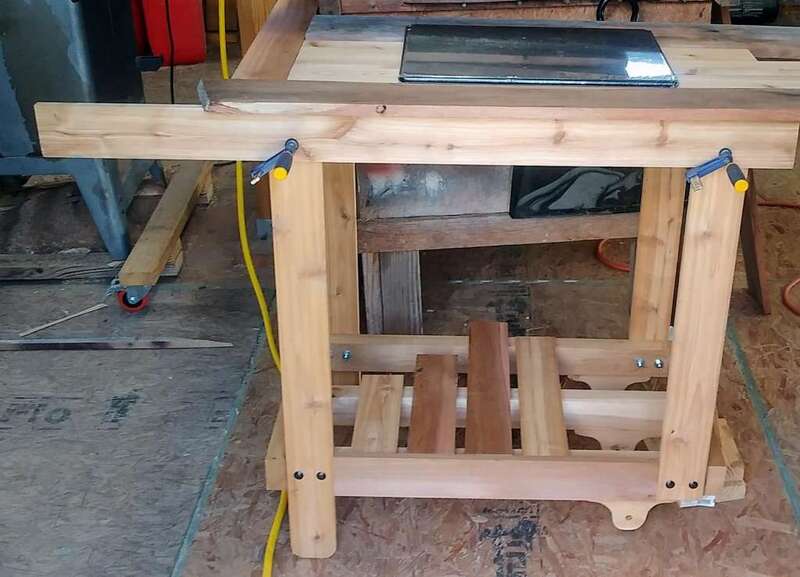

Thanks for the suggestions. Here's a different perspective. This would be a hickory border with a cedar center. The table top boards would be dowelled and glued and then attached to the frame. The handles are represented by the long board that extends to the left. The cutting board would be loose but would slide into a frame accessed under the apron. This cart will be kept inside until used as a prep station next to the pit located at a rustic lake house in East Texas. Hop, I like your idea. I stared at the thing for an hour trying to figure it all out. I'm guessing the hinges would go on the left and right ends. The question then becomes what supports them when they are open. You could move the hinges toward center so that they flop over and on top of the existing top. This would give support but you'd have hinges in the top. If I take away the cutting board, problem solved. Keep it loose and store it under the apron.

Attached Files 20210609_145653~4.jpg
Re: Cedar cart build [Re: malibu6501] #14026576 06/10/21 12:08 AM
Joined: Sep 2008
Posts: 106,449
hopalong Online Confused
Pescador Loco
Online Confused
Pescador Loco
Joined: Sep 2008
Posts: 106,449
handle on ea. end where the tops would stop, instead of hinges move the handle boards up and dado a slot for them to slide out? use wax from a NEW wax ring for a toilet, it is all beeswax (best screw helper out there too).

if you have some 1x8 you can make the handle boards from, cut them to 4" or so where they protrude on the ends and hold them up 1 1/2" with a 3/4 or even a 1" dado for the sliders. make a decorative cut where the 1x8 meets the cart and use the full width to bolt it there.
you do some good work.

Last edited by hopalong; 06/10/21 12:12 AM.

" Hop, set the hook"!
hopalong 99,999
TexDawg 99,999
FJB! not my president by a long shot!

lake fork FISHERMANS COVE MARINA/reservations - 903 474 7479
Re: Cedar cart build [Re: malibu6501] #14027812 06/10/21 09:52 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
Thanks Hop. Well I've been in la la land trying to figure out a direction. I think I have one now. Can't explain it, but when your wood supply is limited, it makes you think way too much. So I went simple and started ripping the hickory into usable lengths and running everything through the planer for thickness and the joiner for edge gluing. Lots of work left to do. But I have a plan, so it's time to get going. No slider Hop. I liked the dado idea. Thanks for the input.

Re: Cedar cart build [Re: malibu6501] #14036746 06/18/21 11:20 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
So it's been a few days. I'm currently gluing up the top using 5/16 dowels and TB3. Getting everything ready has taken awhile. This is a glue up of cedar with hickory. I'm using a self centering jig for the dowels and like it a lot. One tip. Use the correct bit in the dowel jig and then go up a size for glue up. Gives some wiggle room. Once I get these sections done, I'll run them through the planer and then glue them up together. That's the plan.

Attached Files 20210618_175701~2.jpg20210618_175753~2.jpg
Re: Cedar cart build [Re: malibu6501] #14043334 06/25/21 09:12 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
Finally got back on the cart. Bottom shelf slats are cut and planed to size. Top section glue up. Another one to go. Same ol green wheels lol. Went treated for the bottom slats. They were left over from the swing build. Justified.

Attached Files 20210625_165351.jpg
Re: Cedar cart build [Re: malibu6501] #14044045 06/26/21 07:02 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
Got a little more done today. A few more trim pieces and the base is done. Then it's on to the cart top and handles.

Attached Files 20210626_134237~2.jpg
Re: Cedar cart build [Re: malibu6501] #14044159 06/26/21 10:09 PM
Joined: Sep 2008
Posts: 106,449
hopalong Online Confused
Pescador Loco
Online Confused
Pescador Loco
Joined: Sep 2008
Posts: 106,449
thumb


" Hop, set the hook"!
hopalong 99,999
TexDawg 99,999
FJB! not my president by a long shot!

lake fork FISHERMANS COVE MARINA/reservations - 903 474 7479
Re: Cedar cart build [Re: malibu6501] #14045893 06/28/21 10:36 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
Got a glue up for the top today. The dark strips are hickory. The rest is cedar. Also top rails, axle cut and wheels installed. Tomorrow is sand day. Lots of sanding lol.

Attached Files 20210628_164742~2.jpg20210628_165306_HDR.jpg
Re: Cedar cart build [Re: malibu6501] #14048181 06/30/21 07:50 PM
Joined: Mar 2016
Posts: 940
M
malibu6501 Online Content OP
Pro Angler
OP Online Content
Pro Angler
M
Joined: Mar 2016
Posts: 940
Well that's a wrap. The tool slot is surrounded by treated pine and doubles as the cutting board holder. Outside of the two inner frames, everything is removable for maintenance needs in the future. Not shown also are two cedar "coasters" for the front legs to sit on to help protect them.[Linked Image]
[Linked Image]

Re: Cedar cart build [Re: malibu6501] #14052444 07/05/21 12:32 AM
Joined: Sep 2008
Posts: 106,449
hopalong Online Confused
Pescador Loco
Online Confused
Pescador Loco
Joined: Sep 2008
Posts: 106,449
thumb


" Hop, set the hook"!
hopalong 99,999
TexDawg 99,999
FJB! not my president by a long shot!

lake fork FISHERMANS COVE MARINA/reservations - 903 474 7479
Re: Cedar cart build [Re: malibu6501] #14052658 07/05/21 11:50 AM
Joined: Mar 2004
Posts: 8,731
R
Roller22 Online Content
TFF Celebrity
Online Content
TFF Celebrity
R
Joined: Mar 2004
Posts: 8,731
Dang malibu, that's nice.
