Re: FF Installation Questions [Re: h4rdcore] #8294355 12/03/12 07:36 PM
Joined: Jan 2012
Posts: 766
Y
yakintime Offline
Pro Angler
Offline
Pro Angler
Y
Joined: Jan 2012
Posts: 766
Marine Goop should work as your adhesive for wood to plastic....

Re: FF Installation Questions [Re: h4rdcore] #8294394 12/03/12 07:46 PM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
Cool. Thanks. Now if only i can battle through being sick and get some work done on this instalation.



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8295009 12/03/12 10:48 PM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
Ok where in the heck do you buy a pool noodle in december?



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8295019 12/03/12 10:50 PM
Joined: Jul 2011
Posts: 770
N
ncamfield Offline
Pro Angler
Offline
Pro Angler
N
Joined: Jul 2011
Posts: 770
Good Question!!! I've looked at 3 different wally worlds and still haven't found any.

Re: FF Installation Questions [Re: h4rdcore] #8295099 12/03/12 11:13 PM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
Lessies pool supplies has em. Now if only i can make it there by 6



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8295276 12/04/12 12:12 AM
Joined: Jul 2001
Posts: 2,180
B
bert Offline
Extreme Angler
Offline
Extreme Angler
B
Joined: Jul 2001
Posts: 2,180
Originally Posted By: h4rdcore
Well I was hoping to mount the batter box someway so that it will not slide around.


There are some strings in the front of your front hatch add an s clip and run them through the handle and the battery box will stay in the nose of the boat, see third pic. In salt I would want the battery box totally sealed. This is how I have mine set up,

Inside battery box connection,


Plug to box cord,



Clipped in to cords with Sclip,



Perko cowl with plug coming from battery box,



Plugged in,



Ram mount with madd frog transducer arm,



Transducer arm,



Bert

"Ipsa scientia potestas est"-Knowledge in itself is power - Sir Francis Bacon

"Beware the lolipop of mediocrity, one lick and you could suck forever" - unknown author
Re: FF Installation Questions [Re: h4rdcore] #8295834 12/04/12 02:27 AM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
That idea might just work. However a nice battery box is not in the budget at the moment. So i am just going with the castnet box. Hopefully i can get it high enough to stay out of the water completely but we will see. I did install the transducer today, still feeling sick though so i took some nightquill. Hopefully i will be passed out soon lol.



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8299680 12/05/12 02:09 AM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
Well here is what i have come up with so far.

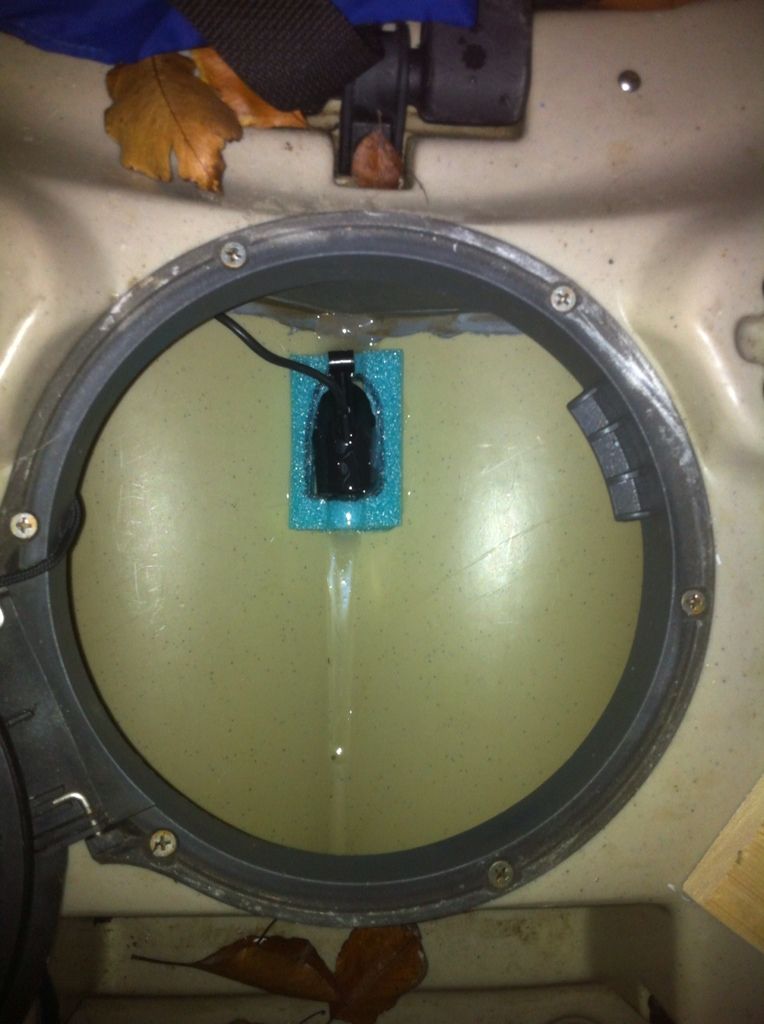

Transducer is mounted in the hatch behind the seat.


Moved my rod holder foward and installed the FF where the rod holder was. I filled the holes from the rod holder with silicon, it was way crooked before lol.

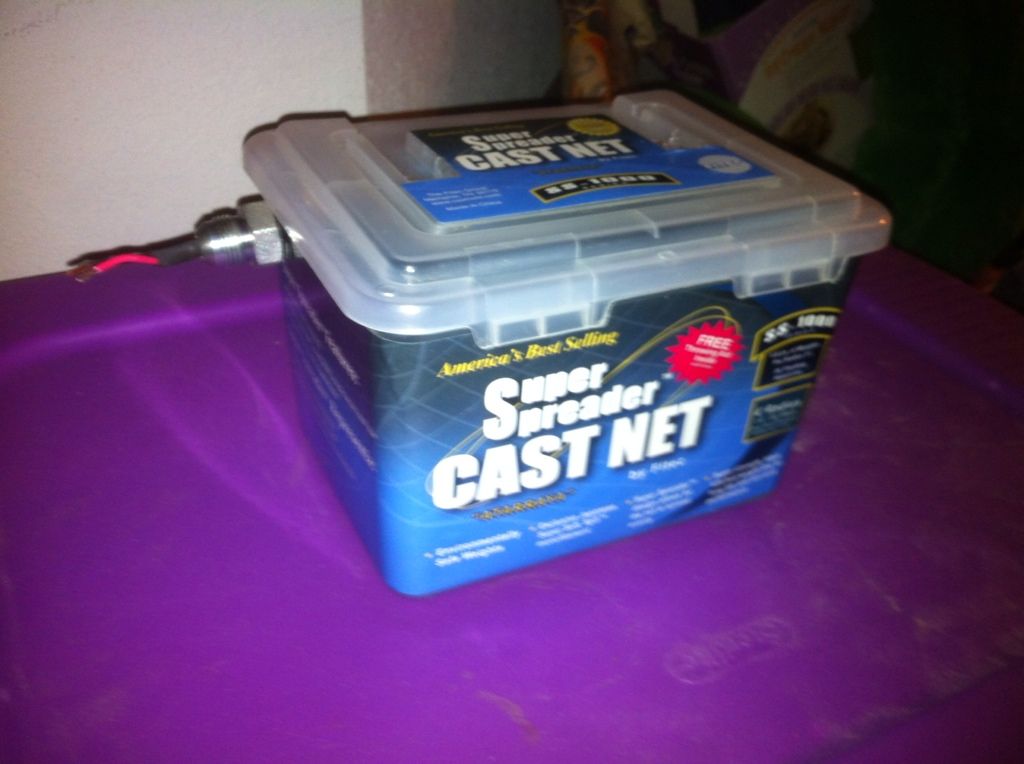

Put some pool noodle into the box to keep it from moving around and installed my custom fitting which i plan to fill with silicon as well. I am thinking i will mount it up in the nose of the kayak.



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8299757 12/05/12 02:25 AM
Joined: May 2012
Posts: 783
E
Eat Sleep Fish Offline
Pro Angler
Offline
Pro Angler
E
Joined: May 2012
Posts: 783
Looks great man, very good DIY solutions.


Its not about how many fish you catch or how big they are, its about the memories you make catching those fish.

As always, tight lines!

https://www.youtube.com/user/BayouBassKing
Re: FF Installation Questions [Re: h4rdcore] #8299858 12/05/12 02:42 AM
Joined: Jul 2008
Posts: 2,469
G
gutcheck Offline
Extreme Angler
Offline
Extreme Angler
G
Joined: Jul 2008
Posts: 2,469
Yeah that should work well...


[Linked Image][Linked Image][Linked Image]
Re: FF Installation Questions [Re: h4rdcore] #8300906 12/05/12 01:23 PM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388

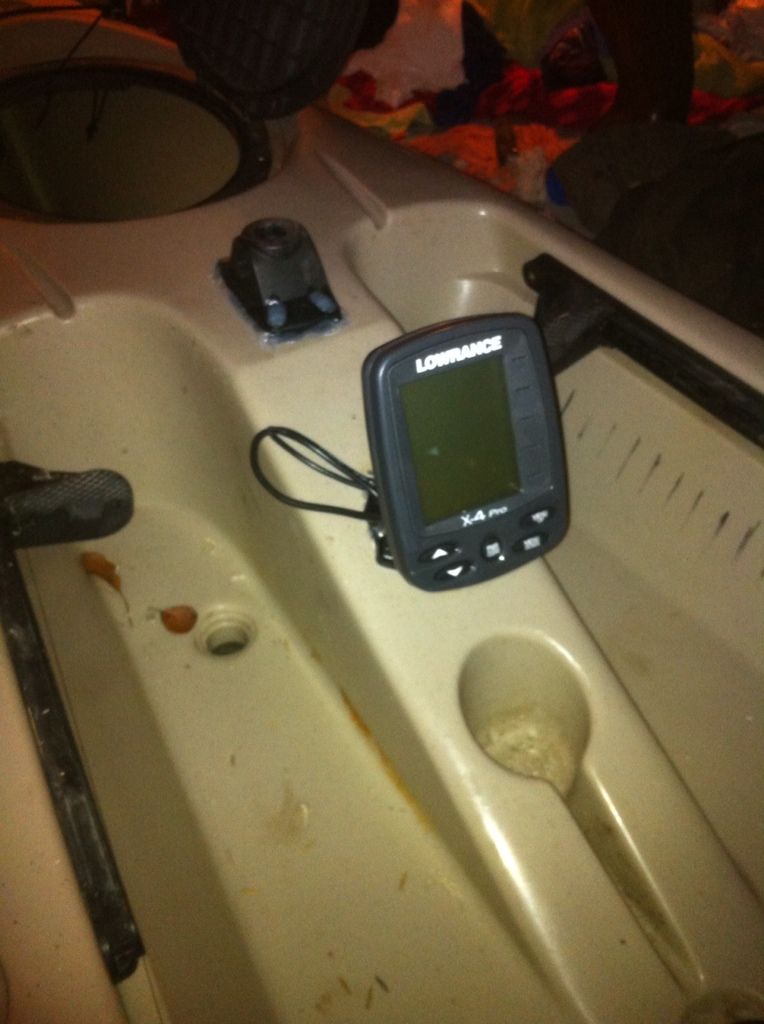

I just realized that i posted the transducer pic twice instead of the FF main unit. Here it is.



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8308906 12/07/12 04:27 PM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
Well here is an update on my project. When I installed the battery into the box it decided to make it completely seal, so I siliconed the entire lip of the castnet box and shut it. I also siliconed the fitting where the connectors come out and the 2 holes in the top for the handle. I decided to let the silicon cure overnight and test fit everything after work the next day. Yesterday I get home and hook up the battery box to the FF to make sure all my crimps and connectors were good. Hit power, nothing. So I take the box inside and hook it to the charger thinking it might not be charged enough, charger is showing the light for no connection, [censored].

So I grab my fluke meter and test the the voltage, nothing. So I open the box, ripping the silicon out. Test voltage on the battery terminals and all good. Check the block wire, for resistance, good. Ohm out the red, and OL. Found the fuse was bad. I had tested the battery and FF before i did all this but i neglected to check the fuse that came with the FF. Had to run up to the hardware store and got side tracked looking for stuff for other projects. They did not have it and had to go to the auto parts store to get it. Also got me a cheap LED flashlight for my 360 light pole I am working on.

Got home installed the fuse, hooked it up and it worked. Siliconed the lip of the box again to make it watertight again. Then I started working on some of my other projects.

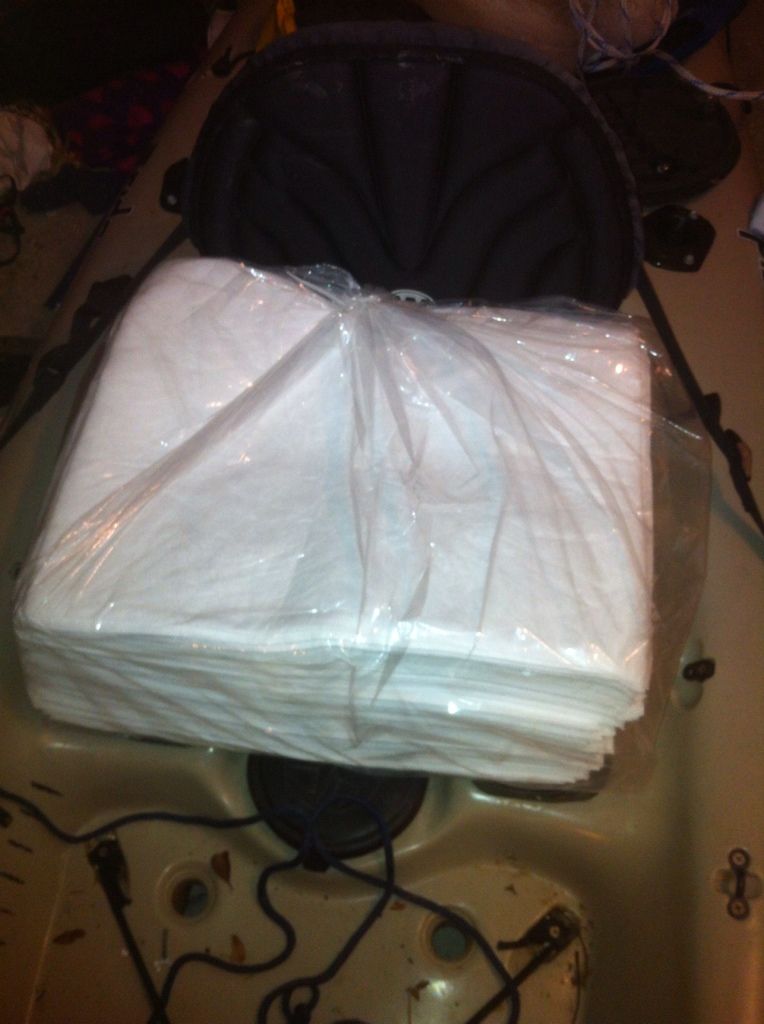

Raised seat thing I was working on has been on hold for awhile but I found inspiration at work yesterday and made a super simple raised seat in about 5 seconds. I got a pack of "oil soaker pads" they absorb oil and repel water and work good as a cushion as well. This is just the temporary solution, but it will work for now.


After that I started working on my light pole. I had grabbed a oil sample bottle from work that we use to send in oil sample to be tested for contamination. I used some super glue to attach it to the flashlight I bought. It says 30 lumens for 32 hours on the package, I find that a bit dubious on 3 AAAs but who knows, and it was only $5. http://www.homedepot.com/buy/life-gear-m...#specifications but mine is black. I had an old cheapo paddle that had come with my pelican kayak that had broke a blade when I turtled in 3ft deep water with a rock bottom. So I cut the broken blade and the good blade off of the shaft. Now I have a pole to mount my light on and it will easily collapse down. Now I just have to figure out how to connect the light to the pole while keeping it removable to change the batteries.



If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: h4rdcore] #8309391 12/07/12 06:43 PM
Joined: Jan 2003
Posts: 19,381
Jimbo Offline
TFF Guru
Offline
TFF Guru
Joined: Jan 2003
Posts: 19,381
Have you tried the depth finder in the water yet?

Reason I ask is I've never seen a transducer mounted into the "V" of the hull before. I know that you have silicone and no air bubbles, but wondering if the contour of the hull under the transducer will effect the reading? Probably not, but I've never seen one mounted there before and I might have to try that if I decide to put mine inside the hull.


Just one more cast!

Re: FF Installation Questions [Re: h4rdcore] #8309476 12/07/12 07:08 PM
Joined: Oct 2010
Posts: 1,388
H
h4rdcore Offline OP
Extreme Angler
OP Offline
Extreme Angler
H
Joined: Oct 2010
Posts: 1,388
Well I would have liked to put it in a flat area, but ever the areas beside it are round not flat. No flat areas on the hull of my kayak. I will let ya know what happens when I take it out this weekend. Worst case scenario is I have to remount it. I used a ton of goop to fill the space between the ducer and hull. Hopefully that is good enough.

Last edited by h4rdcore; 12/07/12 07:12 PM.


If it ain't broke, fix it till it is.
Re: FF Installation Questions [Re: FishR2099] #8309509 12/07/12 07:18 PM
Joined: Nov 2012
Posts: 4
H
hickoxp Offline
Green Horn
Offline
Green Horn
H
Joined: Nov 2012
Posts: 4
Originally Posted By: FishR2099
My 798ci SI is power hungry, so usually have 2 7ah batteries with me so I can swap em if one runs dry. I just keep them in a small styrofoam shipping cooler with a bungee cord holding it shut. Not worried about water, just keeps them from sliding around and connections coming loose or something.


If you take both batteries and hook them up in parallel you probably won't need to swap them out at all. You will keep the same voltage but double the amperage.
