Night Catfishing rig. Pic Heavy #4098610 10/29/09 11:36 PM
Joined: Aug 2008
Posts: 11,592
D
DEERSTRANGLER� Offline OP
TFF Guru
OP Offline
TFF Guru
D
Joined: Aug 2008
Posts: 11,592
I got tired of having to mess with headlamps or flashlights for fishing out of my boat at night so I rigged this up.

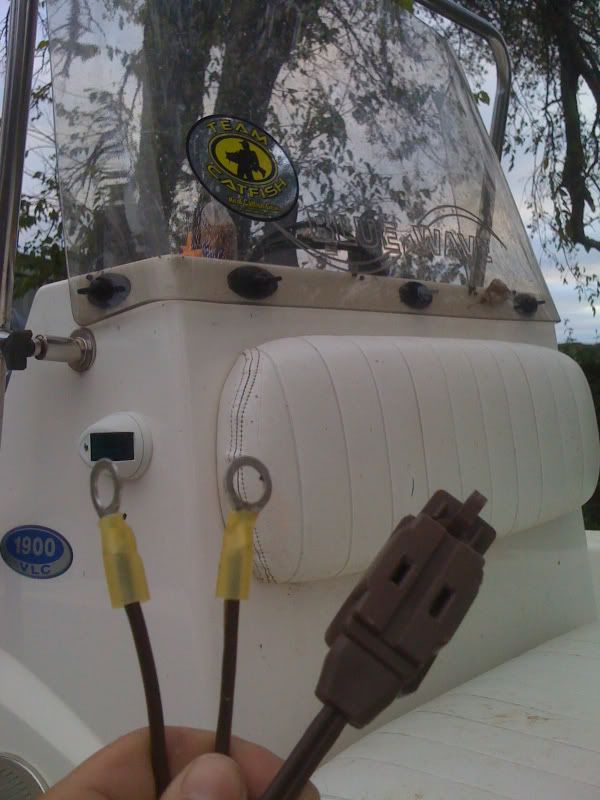

I took a normal household extension cord and cut the male end off and added ring connectors so as to put them on the 12volt battery for the trolling motor.

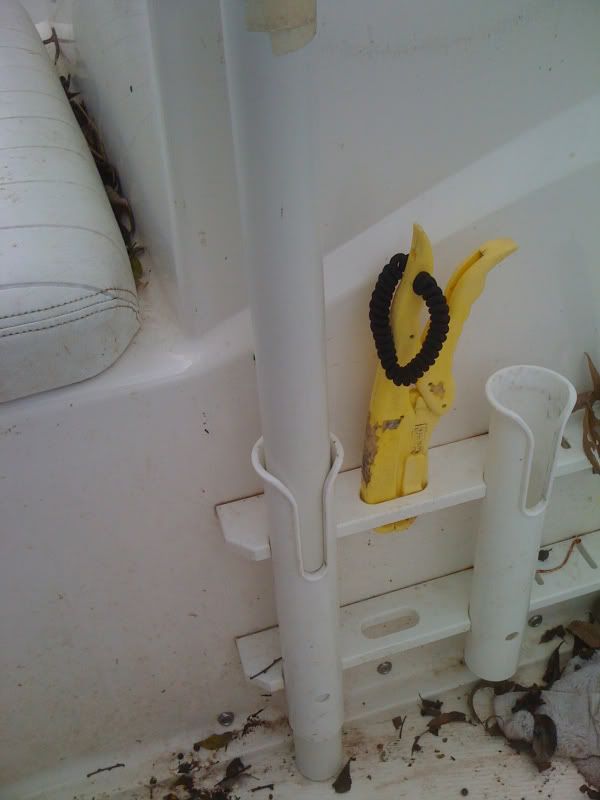

I bought 1 1/4" sch40 PVC and made a frame that would fit inbetween my Center Console using two of my Rod holders as the holder for the light rig.

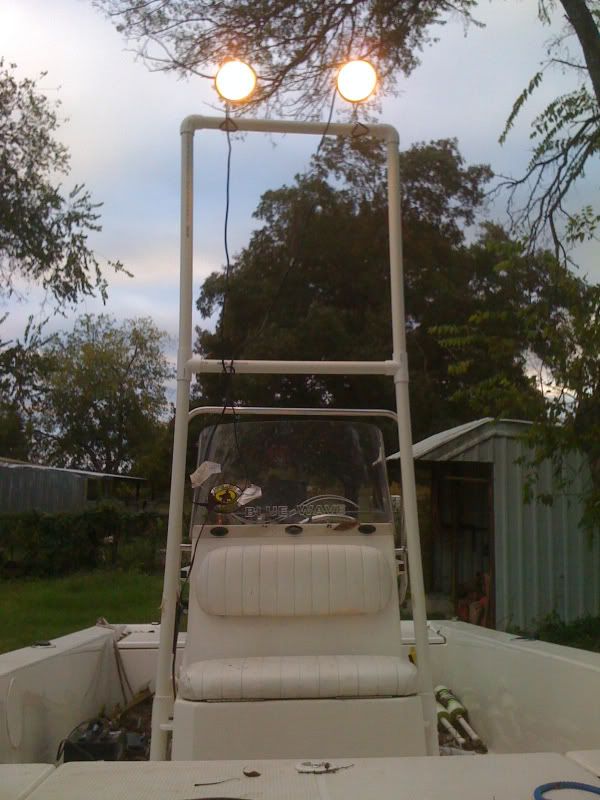

I then purchased two clamp style work lights and two 12volt 50w bulbs in the RV section at Walmart. Once it was all hooked up it looks like this.

Daytime photos do this no justice. When I fish at night now it's like daylight out to 25 feet all around the boat. I usually run one light in front and one out back with the room to add two more should I choose.


Wet Rooster Jigs Fishing Super Store
Re: Night Catfishing rig. Pic Heavy [Re: DEERSTRANGLER�] #4098628 10/29/09 11:39 PM
Joined: Feb 2009
Posts: 13,072
tgravley aka lewisvillecatfish Offline
TFF Guru
Offline
TFF Guru
Joined: Feb 2009
Posts: 13,072
put a small power inverter on your batteries. you can use 2 100 watt flour.flood lite bulbs for 2 nites. will really lite it up


I live with Fear everyday but sometimes she lets me go fishin
Lewisvillecatfish.com

PB 65#
www.lewisvillecatfish.com
Facebook.com/Tom Gravley
www.youtube.com/gravleybrats
Re: Night Catfishing rig. Pic Heavy [Re: tgravley aka lewisvillecatfish] #4098644 10/29/09 11:42 PM
Joined: Aug 2008
Posts: 11,592
D
DEERSTRANGLER� Offline OP
TFF Guru
OP Offline
TFF Guru
D
Joined: Aug 2008
Posts: 11,592
I wanted to keep it all 12v. I experimented with a converter and found the battery died sooner and with the compact flor bulbs the converter did'nt have the oompf to fire them off. I've used the rig as it is now for 45 hours use time and it's still running bright as ever.

Re: Night Catfishing rig. Pic Heavy [Re: tgravley aka lewisvillecatfish] #4098645 10/29/09 11:42 PM
Joined: Mar 2003
Posts: 2,907
L
Lewisville Catfishing Offline
Extreme Angler
Offline
Extreme Angler
L
Joined: Mar 2003
Posts: 2,907
Originally Posted By: tgravley
put a small power inverter on your batteries. you can use 2 100 watt flour.flood lite bulbs for 2 nites. will really lite it up


+1 to the inverter. Works great

Re: Night Catfishing rig. Pic Heavy [Re: DEERSTRANGLER�] #4098651 10/29/09 11:44 PM
Joined: Feb 2009
Posts: 13,072
tgravley aka lewisvillecatfish Offline
TFF Guru
Offline
TFF Guru
Joined: Feb 2009
Posts: 13,072
that will work, i didnt have any trouble with mine. great for drifting nites. you dont have to worry about anyone running over you at nite LOL


I live with Fear everyday but sometimes she lets me go fishin
Lewisvillecatfish.com

PB 65#
www.lewisvillecatfish.com
Facebook.com/Tom Gravley
www.youtube.com/gravleybrats
Re: Night Catfishing rig. Pic Heavy [Re: tgravley aka lewisvillecatfish] #4098673 10/29/09 11:50 PM
Joined: Aug 2008
Posts: 11,592
D
DEERSTRANGLER� Offline OP
TFF Guru
OP Offline
TFF Guru
D
Joined: Aug 2008
Posts: 11,592
Originally Posted By: tgravley
that will work, i didnt have any trouble with mine. great for drifting nites. you dont have to worry about anyone running over you at nite LOL


Man you aint kiddin. Those drunks in their cabin cruisers don't even come close now.

Re: Night Catfishing rig. Pic Heavy [Re: DEERSTRANGLER�] #4098736 10/30/09 12:10 AM
Joined: Jun 2004
Posts: 5,516
Chase Offline
TFF Celebrity
Offline
TFF Celebrity
Joined: Jun 2004
Posts: 5,516
Nice job, I'll have to take some pictures of my setup and show you. I got it way up high to keep the bugs up there.

Re: Night Catfishing rig. Pic Heavy [Re: Chase ] #4099153 10/30/09 01:54 AM
Joined: Apr 2006
Posts: 86
D
Denton_Texas Offline
Outdoorsman
Offline
Outdoorsman
D
Joined: Apr 2006
Posts: 86
This is great, good design but you need to put a label or sort of indicate that the socket of the power cord now is 12v DC!, It is not 120v AC. Don't ever make a mistake to connect 120v power to that new extension cord. The 12v battery will be damaged.


Good luck and be safe.
Re: Night Catfishing rig. Pic Heavy [Re: Denton_Texas] #4099656 10/30/09 04:04 AM
Joined: Aug 2008
Posts: 11,592
D
DEERSTRANGLER� Offline OP
TFF Guru
OP Offline
TFF Guru
D
Joined: Aug 2008
Posts: 11,592
Im looking forward to putting a T-top on the boat soon with a set of LEDs but I had to make due with my PVC rig for now.

Re: Night Catfishing rig. Pic Heavy [Re: DEERSTRANGLER�] #4099737 10/30/09 05:00 AM
Joined: May 2007
Posts: 1,629
P
Pavur Outdoors Offline
Extreme Angler
Offline
Extreme Angler
P
Joined: May 2007
Posts: 1,629
That is awesome! I wish i had those on my CC. Good idea




PAVUR OUTDOORS
Live Fishing Reports: https://www.facebook.com/pages/Pavur-Outdoors/396249107116881
CAST&BLAST- CATFISH,CRAPPIE,DEER,QUAIL,HOGS,DOVE,DUCKS
All Inclusive Trips
940-206-6375


Re: Night Catfishing rig. Pic Heavy [Re: Pavur Outdoors] #4099809 10/30/09 06:25 AM
Joined: Aug 2008
Posts: 1,725
C
Capt'n Wings Offline
Extreme Angler
Offline
Extreme Angler
C
Joined: Aug 2008
Posts: 1,725
I think your current rig is better than LEDs on a T-top.


"Faith requires one to elevate the practice of not thinking to a virtue," Mark Twain
Re: Night Catfishing rig. Pic Heavy [Re: Capt'n Wings] #4100039 10/30/09 12:27 PM
Joined: Dec 2006
Posts: 47,063
Mudshark Offline
TFF Guru
Offline
TFF Guru
Joined: Dec 2006
Posts: 47,063
That is nice!! I might have to copy that.


[Linked Image]


Re: Night Catfishing rig. Pic Heavy [Re: Mudshark] #4100297 10/30/09 01:46 PM
Joined: May 2003
Posts: 1,316
H
HonkyVoodooFishing Offline
Extreme Angler
Offline
Extreme Angler
H
Joined: May 2003
Posts: 1,316
Think twice before you put a T-Top on there...once you've thought twice think about it twice more.

In my opinion, which is worth the paper it is written on, T-Tops don't have a place on anything but an offshore boat. They especially don't have a place on a boat less than about 22-24ft.

They don't provide all that much useable shade. The only real advantage is an elevated position for antennas, rods, lights, etc.

The down side is they get in the way of EVERYTHING. No more low bridge clearance, no more casting, be prepared to drift faster.

I had one on my boat and usually leave it off except for a couple months a year in the summer when I fish the coast alot.


Instagram @honkyvoodoofishing
Re: Night Catfishing rig. Pic Heavy [Re: HonkyVoodooFishing] #4102163 10/30/09 09:12 PM
Joined: Oct 2009
Posts: 79
1
1000yards Offline
Outdoorsman
Offline
Outdoorsman
1
Joined: Oct 2009
Posts: 79
Just a thought.....on my ex-catfishing boat (now the ex's boat lol) I bought 10-12 red led tractor trailer marker lights - about 1" tall and 3" long and ganged them along (under on my boat) the rail down both sides and put a couple on the center console as well. Made for plenty of light to fish by without calling every bug on the lake - always heard that red light does not degrade your night vision as badly as well.

They are very cheap and sure worked well - I think I saw some the other day that had 'shields' to keep the light shining in the direction you prefer.

Didn't help any with the cabin cruisers though.....

Agree on the t-top - great place to store stuff but even on my 22" er it made it much harder to fish out of - always had to look out on your casts and it's no fun when the winds really blowing.


1999 Bullet 21XD 300 Pro Max
Re: Night Catfishing rig. Pic Heavy [Re: 1000yards] #4102598 10/30/09 11:02 PM
Joined: Aug 2008
Posts: 11,592
D
DEERSTRANGLER� Offline OP
TFF Guru
OP Offline
TFF Guru
D
Joined: Aug 2008
Posts: 11,592
I'll keep the tips in mind. The one that I've got my eye on is custom fabricated to take down and out for travel or non-use.
